Pneumatic Operated Wafer Butterfly Valve With Soft Seat

Classification：

Wafer center line butterfly valve with soft seat

Summary

Product Model: D671X-10/16Q、D671X-10K 、D671X-150LB Size: DN40-DN800 Nominal Pressure: PN10/PN16/Class 150/10K Suitable Temperature: -20～120℃

Message

PRODUCT DETAILS

Product Model: D671X-10/16Q、D671X-10K 、D671X-150LB

Size: DN40-DN800

Nominal Pressure: PN10/PN16/Class 150/10K

Suitable Temperature: -20～120℃

Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Body Materials: Ductile Iron

Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Product Introduction

1、Design Standards

Design and manufacturing standards:	GB/T 12238 Design and Manufacture Standard: GB/T 12238
Structure length standard:	GB/T 12221 Structure Length Standard: GB/T 12221
Test Standards:	GB/T 13927 Test Standard：GB/T 13927
Upper flange connection standard:	ISO 5211 Top Flange Connection Standard:
Flange size standard:	GB/T 17241.6、ASME B16.5、ASME B16.47、 ASME B16.1、JIS B2220 Flange Size Standard: B16.47、 ASME B16.1、JIS B2220

2、Main Parts Materials

Valve body material:	DI Body Materials: DI
Butterfly plate material:	DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598 Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Valve seat material:	EPDM、NBR、Viton Seat Materials: EPDM、NBR、Viton
Valve spindle material:	SS416、SS420、SS304 Stem Materials: SS416、SS420、SS304

3、Product Advantages

All products can provide the pressure test: All Arnos products can provide the pressure test report before leaving the factory.

High performance seat rubber: The rubber content is 50%, and the switch life is more than 10000 times

Soft seat: Compared with the hard seat, the contact surface between pipes and flanges is more wider than hard seat, and sealing performance of installation is better, and the special flange of the butterfly valve is not required;

Axial seal: The shaft is supported by 4 oil-free bearings, with double seal structure design, smaller torque and reliable seal;

Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

Pneumatic Operated: The pneumatic operated adopts double piston rack structure, precise meshing, high efficiency and outputting constant torque. The cylinder body is made of extruded aluminum alloy with high strength and hardness. The sliding bearing is made of low friction materials, low friction coefficient, flexible rotation and long service life.

The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and pneumatic operated can be changed under pressure.

4、Parameters

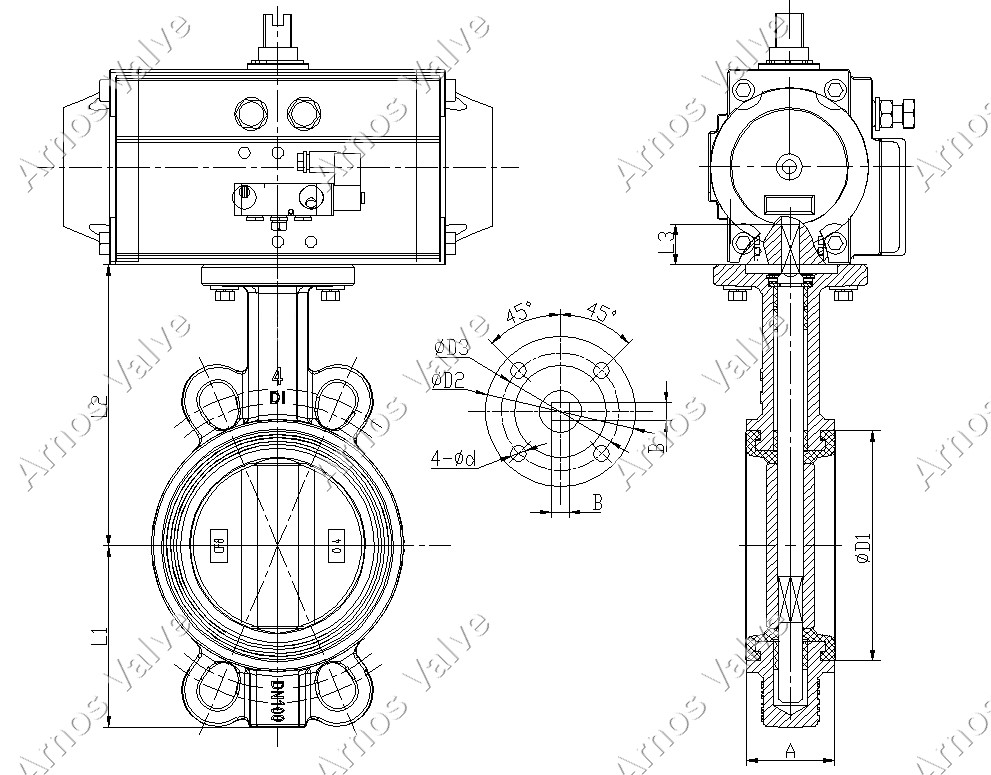

DN40-DN350

Top Flange Connection Size

DN		A	D1	L1	L2	L3	B	φD2	φD3	n-φd
1.5″	DN40	34	62.5	55.5	111.5	14	9	65	50	4-8
2″	DN50	43	80	72	132	14	9	65	50	4-8
2.5″	DN65	46	95	86	138	18	9	65	50	4-8
3″	DN80	46	113	96	153	18	9	65	50	4-8
4″	DN100	52	135	108	167	20	11	90	70	4-10
5″	DN125	56	163	125	184	20	14	90	70	4-10
6″	DN150	56	190	138	195	25	14	90	70	4-10
8″	DN200	60	244	170	236	25	17	125	102	4-12
10″	DN250	68	298	209	266	30	22	125	102	4-12
12″	DN300	78	350	236	305	30	22	125	102	4-12
14″	DN350	78	397	271	327	40	22	125	102	4-12

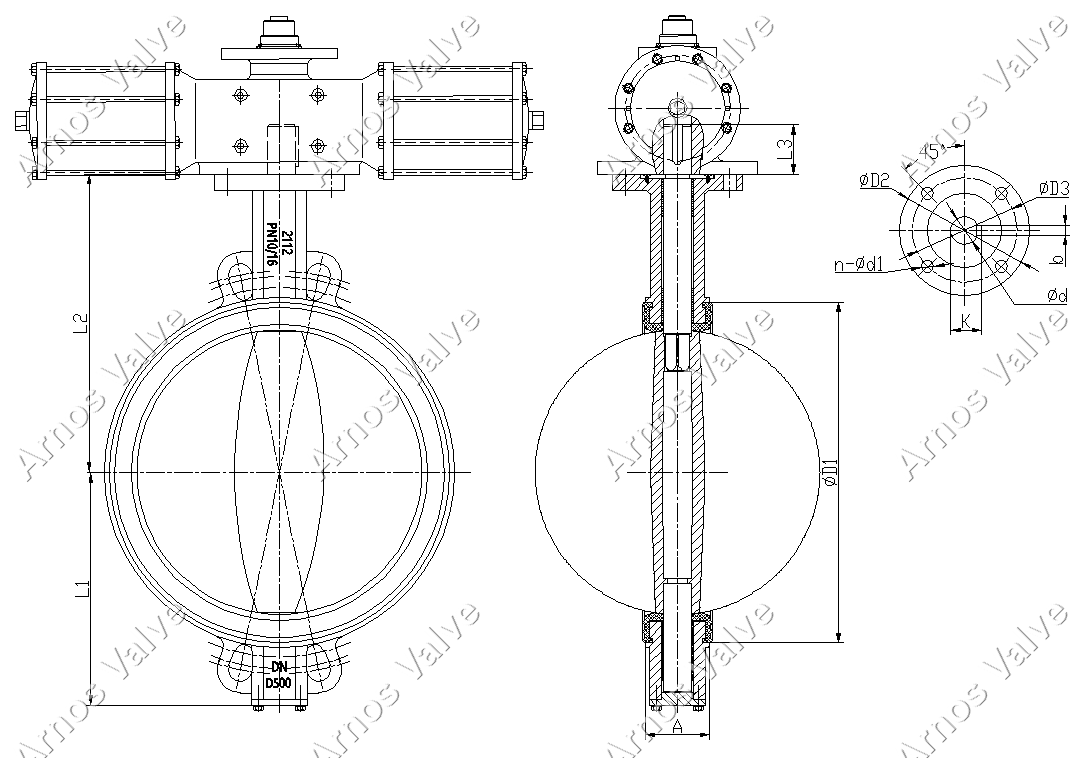

DN400-DN800

Top Flange Connection Size

DN		A	D1	L1	L2	L3	φd	φD2	φD3	n-φd1	N-b	K
16″	DN400	85.5	456	320	403	52	33.15	175	140	4-18	1-10	36.2
18″	DN450	103	516	351	415	52	38	175	140	4-18	1-10	41
20″	DN500	125	556	386	466	64	41.15	175	140	4-18	1-12	44.2
24″	DN600	151	658	446	525	70	50.65	210	165	4-22	1-16	54.7
28″	DN700	164	771.5	520	618	95	63.35	300	254	8-18	2-18	71.4
32″	DN800	189	811	580	665	95	63.35	300	254	8-18	2-18	71.4
