Flange Adaptor for PVC Pipe
Classification：
Summary
PRODUCT DETAILS
◆ Features
● Ductile Iron GGG50 material with FBE coated.
●PN10,PN16 working pressure
● EquippedwithDacromet Coated Steel bolts,nuts.
●EPDM or NBR rubber seals.

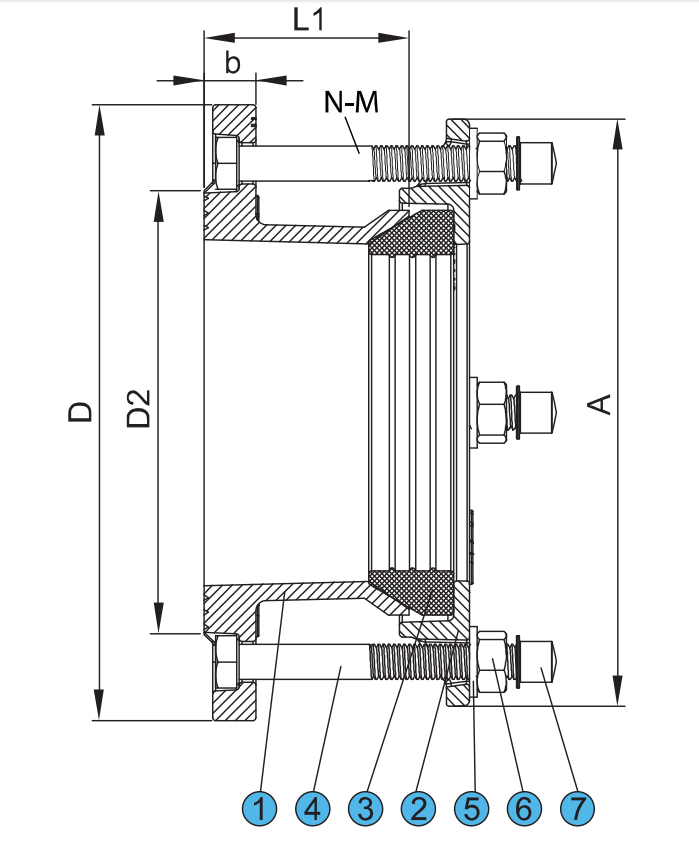

◆ Material Specification:
|
No. |
Parts Name |
Material |
Specification |
|
1 |
Body |
Ductile Iron |
GGG50 |
|
2 |
End Ring |
Ductile Iron |
GGG50 |
|
3 |
Rubber Seal |
Rubber |
EPDM |
|
4 |
Bolt |
Dacromet Coated Steel |
ISO898-1:1999 |
|
5 |
Washer |
Dacromet Coated Steel |
|
|
6 |
Nut |
Dacromet Coated Steel |
ISO898-2:1992 |
|
7 |
Cap |
Plastic |
|
◆ Dimensions(mm)
|
DN |
Pipe OD |
D |
D2 |
A |
L1 |
b |
N-M |
|
DN50 |
63 |
175 |
99 |
155 |
63 |
18 |
4-M12 |
|
DN80 |
75 |
175 |
99 |
168 |
63 |
18 |
4-M12 |
|
DN100 |
90 |
190 |
131 |
185 |
68 |
18 |
4-M12 |
|
DN150 |
110 |
210 |
153 |
205 |
68 |
18 |
4-M12 |
|
DN200 |
160 |
275 |
201 |
260 |
68 |
18 |
4-M12 |
|
DN200 |
200 |
330 |
266 |
310 |
68 |
19 |
4-M12 |
|
DN250 |
225 |
330 |
266 |
325 |
68 |
19 |
4-M12 |
|
DN250 |
250 |
405 |
319 |
355 |
68 |
19 |
6-M12 |
|
DN300 |
315 |
455 |
370 |
425 |
88 |
20 |
6-M12 |
|
DN350 |
355 |
520 |
429 |
475 |
110 |
24.5 |
8-M16 |
|
DN400 |
400 |
580 |
480 |
520 |
110 |
24.5 |
8-M16 |
|
DN450 |
450 |
640 |
548 |
570 |
110 |
24.5 |
10-M16 |
|
DN500 |
500 |
715 |
609 |
620 |
115 |
26.5 |
10-M16 |
|
DN600 |
630 |
840 |
720 |
750 |
115 |
30 |
10-M16 |
|
DN700 |
710 |
910 |
794 |
830 |
115 |
32.5 |
12-M16 |
|
DN800 |
800 |
1025 |
901 |
920 |
115 |
35 |
12-M16 |
Hiwa product speifiation in this catalogue for reference only,the produc construction subject to Hiwal's design,Hiwa reserve the right to change the design, construction,specification without prior notice and without incuring any obligation.Any definite information kindly contactwith Hiwa directy.
