Universal Flange Adaptor
Classification：
Summary
PRODUCT DETAILS

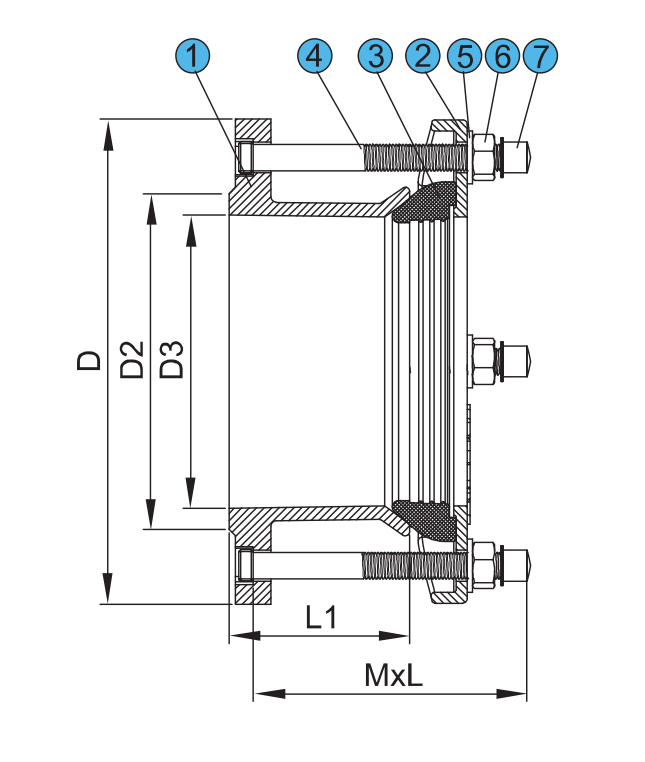

◆Material Specification:
|
No. |
Parts Name |
Material |
Specification |
|
1 |
Body |
Ductile Iron |
GGG50 |
|
2 |
End Ring |
Ductile Iron |
GGG50 |
|
3 |
Rubber Seal |
Rubber |
EPDM |
|
4 |
Bolt |
Dacromet Coated Steel |
ISO898-1:1999 |
|
5 |
Washer |
Dacromet Coated Steel |
|
|
6 |
Nut |
Dacromet Coated Steel |
ISO898-2:1992 |
|
7 |
Cap |
Plastic |
|
◆ Features
● Ductile Iron GGG50 material with FBE coated.
● PN10,PN16 working pressure.
● Equipped with Dacromet Coated Steel bolts,nuts.
● EPDM or NBR rubber seals.
● High Tolerance Mechanical Pipe Fittings
◆ Dimensions(mm)
|
Size |
Pipe OD(mm) |
D |
D2 |
D3 |
L1 |
MxL |
Bolt No. |
|
DN40 |
48-60 |
150 |
84 |
64 |
82 |
M12x125 |
2 |
|
DN50 |
59-72 |
165 |
99 |
|
82 |
M12x125 |
|
|
DN65 |
72-85 |
185 |
108 |
90 |
82 |
M12x125 |
2 |
|
DN80 |
88-103 |
200 |
132 |
108 |
82 |
M12x125 |
4 |
|
DN100 |
98-118 |
200 |
132 |
122 |
82 |
M12x125 |
4 |
|
DN100 |
109-128 |
220 |
156 |
133 |
82 |
M12x125 |
4 |
|
DN100 |
107-132 |
220 |
156 |
136 |
82 |
M12x125 |
4 |
|
DN125 |
132-153 |
250 |
184 |
158 |
82 |
M12x140 |
4 |
|
DN150 |
158-172 |
285 |
211 |
177 |
82 |
M12x140 |
4 |
|
DN150 |
159-182 |
285 |
211 |
187 |
82 |
M12x140 |
4 |
|
DN200 |
192-210 |
340 |
266 |
215 |
82 |
M12x140 |
4 |
|
DN200 |
198-225 |
340 |
266 |
231 |
82 |
M12x140 |
4 |
|
DN200 |
218-235 |
340 |
266 |
241 |
82 |
M12x140 |
4 |
|
DN250 |
242-267 |
405 |
319 |
272 |
82 |
M12x140 |
4 |
|
DN250 |
272-289 |
405 |
319 |
295 |
90 |
M12x140 |
6 |
|
DN300 |
315-332 |
460 |
370 |
338 |
90 |
M12x150 |
6 |
|
DN300 |
322-339 |
460 |
370 |
345 |
90 |
M12x150 |
6 |
|
DN300 |
315-349 |
460 |
370 |
353 |
90 |
M14x150 |
6 |
|
DN300 |
340-360 |
460 |
370 |
335 |
130 |
M14x180 |
6 |
|
DN350 |
340-360 |
520 |
425 |
364 |
115 |
M14x180 |
8 |
|
DN350 |
351-378 |
520 |
425 |
382 |
115 |
M14x180 |
8 |
|
DN350 |
374-391 |
520 |
425 |
393 |
115 |
M14x180 |
8 |
|
DN400 |
398-429 |
580 |
477 |
432 |
115 |
M14x180 |
8 |
|
DN400 |
410-436 |
580 |
477 |
440 |
115 |
M14x180 |
8 |
|
DN400 |
425-442 |
580 |
477 |
444 |
115 |
M14x180 |
8 |
|
DN450 |
457-480 |
640 |
550 |
485 |
115 |
M14x180 |
10 |
|
DN450 |
476-493 |
640 |
550 |
498 |
115 |
M14x180 |
10 |
|
DN500 |
498-516 |
715 |
585 |
521 |
115 |
M14x180 |
10 |
|
DN500 |
500-532 |
715 |
585 |
536 |
115 |
M14x180 |
10 |
|
DN500 |
527-544 |
715 |
585 |
548 |
115 |
M14x180 |
10 |
|
DN600 |
608-635 |
840 |
682 |
640 |
115 |
M14x180 |
10 |
|
DN600 |
630-647 |
840 |
682 |
650 |
115 |
M14x180 |
10 |
