PRODUCT DETAILS
◆ Features
● Dimension Range:DN50-DN1200
● Working Pressure:PN21
● Flange Dilling:AS4087 PN21 ●Max.Temperature:70℃
● Restrained type see below dimension sheet.
◆Material Specification:
|
No. |
Parts Name |
Material |
Specification |
|
1 |
Long flange body |
Ductile Iron |
GGG50 |
|
2 |
Short fange body |
DuctileIron |
GGG50 |
|
3 |
Middle flange |
Ductile Iron |
GGG50 |
|
4 |
Seal Ring |
Rubber |
EPDM |
|
5 |
Stud |
Dacromet Coated Steel |
|
|
6 |
Washer |
Dacromet Coated Steel |
|
|
7 |
Nut |
Dacromet Coated Steel |
|
|
8 |
Cap |
Plastic |
|

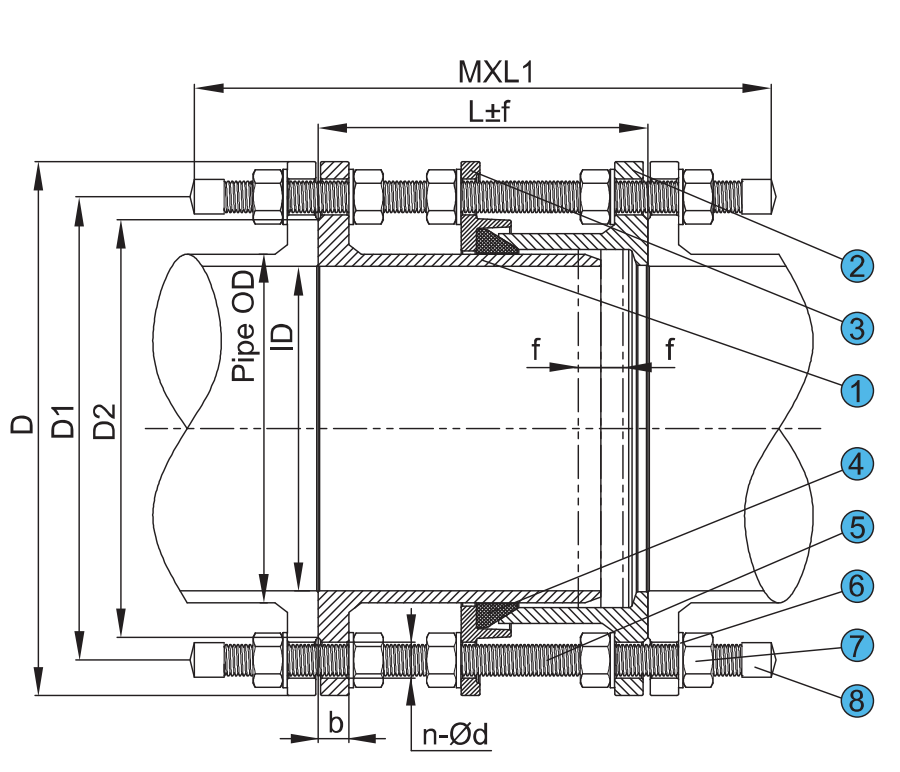

◆ Dimensions(mm)
|
Size |
ID |
Length(mm) |
Adjustment(mm) |
FD10 AS4087 PN21 |
M |
No.of Tie-bar |
|||||||
|
L |
L1 |
f |
D |
D1 |
D2 |
b |
n-d |
25%restrained |
estrained |
0restraia |
|||
|
DN50 |
44 |
195 |
340 |
±25 |
65 |
127 |
103 |
19 |
4-18 |
M16 |
|
|
4 |
|
DN65 |
52 |
195 |
340 |
±25 |
185 |
146 |
122 |
19 |
8-18 |
M16 |
|
4 |
8 |
|
DN80 |
83 |
195 |
340 |
125 |
205 |
165 |
141 |
19 |
8-18 |
M16 |
|
4 |
8 |
|
DN100 |
101 |
195 |
340 |
±25 |
230 |
191 |
167 |
19 |
8-18 |
M16 |
|
4 |
8 |
|
DN150 |
154 |
200 |
350 |
+25 |
305 |
260 |
232 |
20 |
2-22 |
M20 |
3 |
6 |
12 |
|
DN200 |
206 |
210 |
370 |
±25 |
370 |
324 |
296 |
22 |
12-22 |
M20 |
3 |
6 |
12 |
|
DN250 |
258 |
220 |
400 |
士25 |
|
381 |
349 |
24.5 |
2-26 |
M24 |
3 |
|
12 |
|
DN300 |
307 |
230 |
420 |
±25 |
490 |
438 |
406 |
27.5 |
16-26 |
M24 |
4 |
8 |
16 |
|
DN350 |
359 |
240 |
450 |
±25 |
550 |
495 |
459 |
30 |
16-30 |
M27 |
4 |
8 |
16 |
|
DN375 |
395 |
250 |
460 |
125 |
580 |
521 |
485 |
32 |
16-30 |
M27 |
4 |
8 |
16 |
|
DN400 |
408 |
250 |
460 |
±25 |
610 |
552 |
516 |
32 |
20-30 |
M27 |
5 |
10 |
20 |
|
DN450 |
456 |
285 |
480 |
±25 |
875 |
510 |
57 |
34.5 |
20-33 |
M30 |
5 |
10 |
20 |
|
DN500 |
508 |
275 |
510 |
+25 |
735 |
673 |
634 |
36.5 |
24-33 |
M30 |
6 |
12 |
24 |
|
DN600 |
613 |
290 |
530 |
±25 |
850 |
781 |
739 |
42 |
24-36 |
M33 |
6 |
12 |
24 |
|
DN700 |
71 |
295 |
560 |
士2 |
935 |
857 |
815 |
46.5 |
24-36 |
M33 |
6 |
12 |
24 |
|
DN750 |
764 |
320 |
580 |
±25 |
1015 |
940 |
898 |
50 |
28-36 |
M33 |
7 |
14 |
28 |
|
DN800 |
817 |
320 |
600 |
+30 |
060 |
984 |
942 |
51 |
28-36 |
M33 |
7 |
14 |
28 |
|
DN900 |
911 |
320 |
630 |
130 |
1185 |
1105 |
1060 |
55 |
32-39 |
M36 |
8 |
16 |
32 |
|
DN1000 |
1012 |
325 |
640 |
±30 |
1275 |
1194 |
1149 |
60 |
36-39 |
M36 |
9 |
18 |
36 |
|
DN1200 |
1216 |
340 |
700 |
+30 |
1530 |
1441 |
1385 |
69 |
40-42 |
M39 |
10 |
20 |
40 |
Hiwa product speiflation in this catalogue for reference only,the product construction subject to Hiwa's design,Hiwa reserve the right to change the design, construction,specification without prior notice and without incuring any obligation.Any definite information kindly contactwith Hiwa directy.
