Electric Lug Centerline Butterfly Valve

Classification：

LT butterfly valve

Summary

Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Message

PRODUCT DETAILS

Product Model: LTD971X-10/16Q、LTD971X-10K 、LTD971X-150LB

Size: DN50-DN600

Nominal Pressure: PN10/PN16/Class 150/10K

Suitable Temperature: -20～120℃

Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Body Materials: Ductile Iron

Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Product Introduction

1.Design Standards

Design and Manufacture Standard:GB/T 12238

Structure Length Standard: GB/T 12221

Test Standard：GB/T 13927

Top Flange Connection Standard:ISO 5211

Flange Size Standard:ASME B16.47、ASME B16.1、JIS B2220

2.Main Parts Materials

Body Materials: DI

Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598

Seat Materials: EPDM、NBR、Viton、PTFE

Stem Materials: 45#、SS416、SS420、SS304

3.Product Advantages

The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long.

All products can provide the pressure test: All Arnos products can provide the pressure test report before leaving the factory.

High performance seat rubber: The rubber content is 50%, and the switch life is more than 10000 times

Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal;

Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and electric actuator can be changed under pressure.

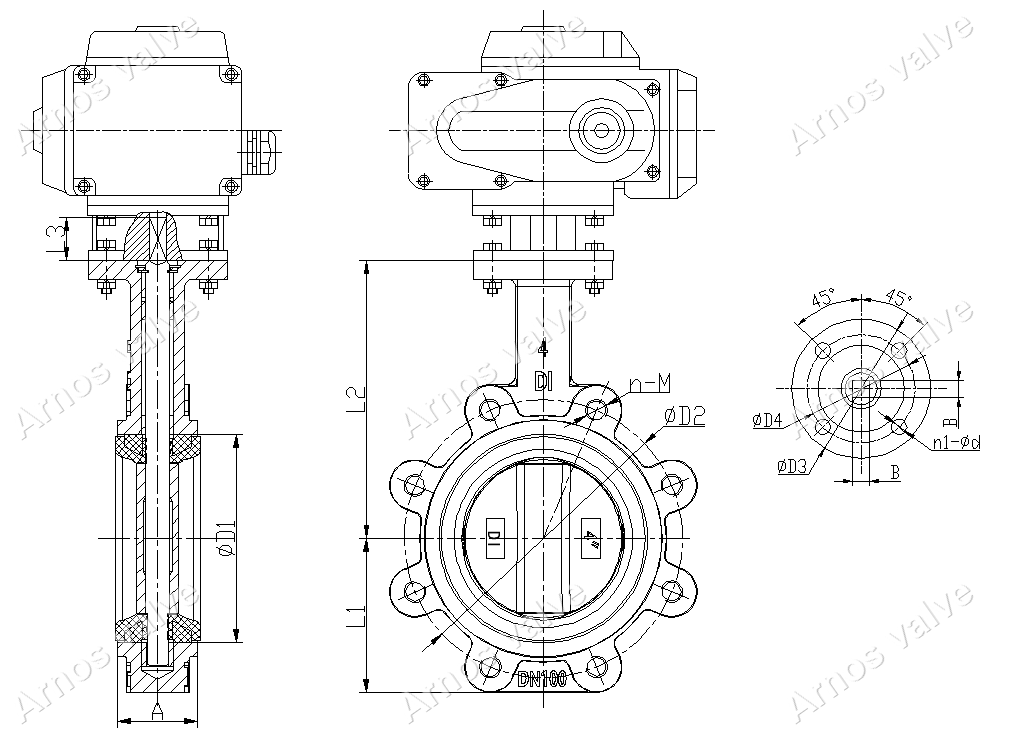

4.Parameters

DN		A	D1	L1	L2	L3	B	PN16		PN10		150LB	φD3	φD4	n1-φd	L
DN		A	D1	L1	L2	L3	B	D2	n-M	D2	n-M	D2	n-M	φD4	n1-φd	L
2″	DN50	42	73.3	54	161	25	9	125	4-M16	125	4-M16	120.7	4-5/8″	65	50	4-8
2.5″	DN65	44	86	62	175	25	9	145	4-M16	145	4-M16	139.7	4-5/8″	65	50	4-8
3″	DN80	45	100.9	82	181	25	9	160	8-M16	160	8-M16	152.4	4-5/8″	65	50	4-8
4″	DN100	51.5	132	99	200	28	11	180	8-M16	180	8-M16	190.5	8-5/8″	90	70	4-10
5″	DN125	54	156	114	213	28	14	210	8-M16	210	8-M16	215.9	8-3/4″	90	70	4-10
6″	DN150	55	185	129	236	28	14	240	8-M20	240	8-M20	241.3	8-3/4″	90	70	4-10
8″	DN200	59	235	150	260	33	17	295	12-M20	295	8-M20	298.5	8-3/4″	125	102	4-12
10″	DN250	66	289	186	292	33	22	355	12-M24	350	12-M20	362	12-7/8″	125	102	4-12
12″	DN300	76	341	218	337	33	22	410	12-M24	400	12-M20	431.8	12-7/8″	125	102	4-12
14″	DN350	76	372	242	368	45	22	470	16-M24	460	16-M20	476.3	12-1″	125	102	4-12

DN		A	D1	L1	L2	L3	φD	N-b	K	PN16		PN10		150LB		φD3	φD4	n1-φd1
DN		A	D1	L1	L2	L3	φD	N-b	K	D2	n-M	D2	n-M	D2	n-M	φD3	φD4	n1-φd1
16″	DN400	86.5	436	320	403	52	33.15	1-10	36.2	525	16-M27	515	16-M24	539.8	16-1″	175	140	4-18
18″	DN450	104.6	487	351	415	52	38	1-10	41	585	20-M27	565	20-M24	577.9	16-1 1/8″	175	140	4-18
20″	DN500	130	532	386	466	64	41.15	1-12	44.2	650	20-M30	620	20-M24	635	20-1 1/8″	175	140	4-18
24″	DN600	152	651	446	525	70	50.65	1-16	54.7	770	20-M33	725	20-M27	749.3	20-1 1/4″	210	165	4-22
