Electric Wafer Universal Centerline Butterfly Valve

Classification：

Center line wafer butterfly valve

Summary

Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Message

PRODUCT DETAILS

Product Model: D971X-10/16Q、D971X-10K 、D971X-150LB

Size: DN40-DN1200

Nominal Pressure: PN10/PN16/Class 150/10K

Suitable Temperature: -20～120℃

Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc

Body Materials: Ductile Iron

Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Product Introduction

1.Design Standards

Design and manufacturing standards:	GB/T 12238 Design and Manufacture Standard: GB/T 12238
Structure length standard:	GB/T 12221 Structure Length Standard: GB/T 12221
Test standards:	GB/T 13927 Test Standard：GB/T 13927
Upper flange connection standard:	ISO 5211 Top Flange Connection Standard:
Flange size standard:	GB/T 17241.6、ASME B16.5、ASME B16.47、 ASME B16.1、JIS B2220 Flange Size Standard: ASME B16.47、 ASME B16.1、JIS B2220

2.Main Parts Materials

Valve body material:	DI Body Materials: DI
Butterfly plate material:	DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598 Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Valve seat material:	EPDM、NBR、Viton Seat Materials: EPDM、NBR、Viton
Valve spindle material:	SS416、SS420、SS304、SS431 Stem Materials: SS416、SS420、SS304、SS431

3.Product advantages

The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;

All products can provide the pressure test: All Arnos products can provide the pressure test report before leaving the factory.

High performance seat rubber: The rubber content is 50%, and the switch life is more than 10000 times

Axial seal: The shaft is supported by 4 oil-free bearings, with double seal structure design, smaller torque and reliable seal;

Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and electric actuator can be changed under pressure.

4.Parameters

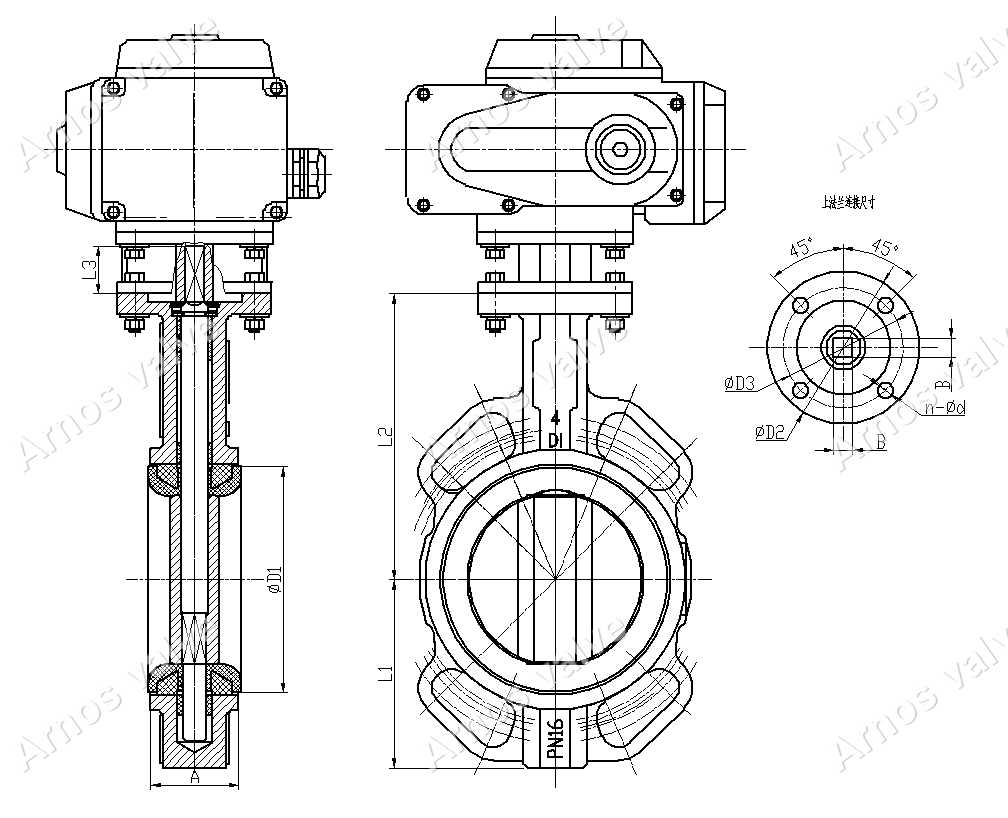

DN		A	D1	L1	L2	L3	B	φD2	φD3	n-φd	φD4
1.5″	DN40	33	69	65	127	25	9	65	50	4-8	135
2″	DN50	42	73.3	75	129	25	9	65	50	4-8	135
2.5″	DN65	44	86	82	136	25	9	65	50	4-8	135
3″	DN80	45	100.9	99	153	25	9	65	50	4-8	135
4″	DN100	51.5	132	110	167	28	11	90	70	4-10	135
5″	DN125	54	156	125	193	28	14	90	70	4-10	135
6″	DN150	55	185	145	209	28	14	90	70	4-10	135
8″	DN200	59	235	170	251	33	17	125	102	4-12	270
10″	DN250	66	289	210	280	33	22	125	102	4-12	270
12″	DN300	76	341	240	312	33	22	125	102	4-12	270
14″	DN350	76	372	271	327	45	22	125	102	4-12	270

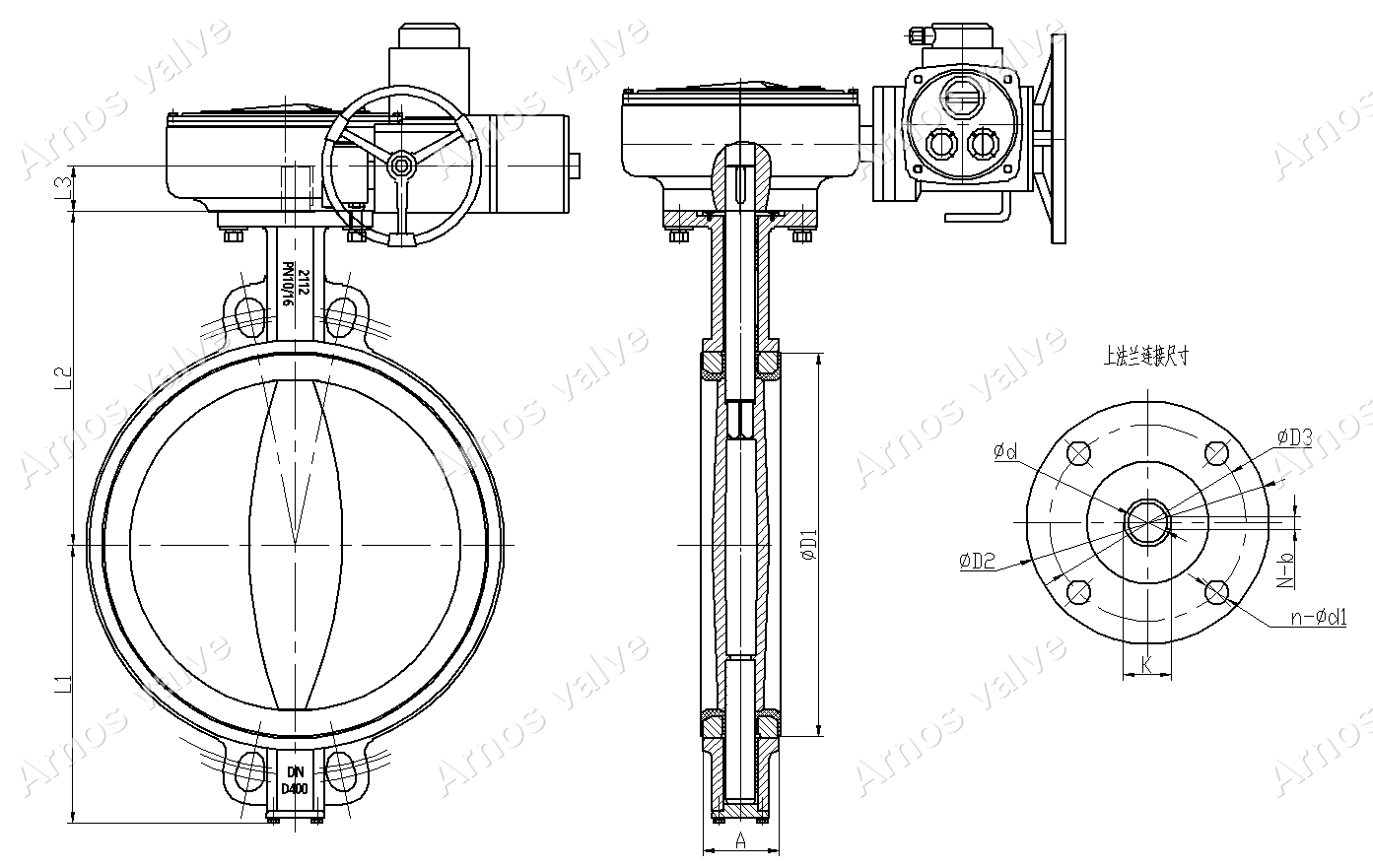

DN		A	D1	L1	L2	L3	φd	φD2	φD3	n-φd1	N-b	K
16″	DN400	86.5	436	320	403	52	33.15	175	140	4-18	1-10	36.2
18″	DN450	104.6	487	351	415	52	38	175	140	4-18	1-10	41
20″	DN500	130	532	386	466	64	41.15	175	140	4-18	1-12	44.2
24″	DN600	152	651	446	525	70	50.65	210	165	4-22	1-16	54.7
28″	DN700	163	741	520	618	95	63.35	300	254	8-18	2-18	71.4
32″	DN800	188	847	580	665	95	63.35	300	254	8-18	2-18	71.4
36″	DN900	203	971	670	720	130	75	300	254	8-18	2-20	84
40″	DN1000	216	1050	735	800	130	85	300	254	8-18	2-22	95
48″	DN1200	276	1261	878	940	150	105	350	298	8-22	2-28	117
