FuII Faced sphericaI Rubber Expansion Joint Fig.SF30
Classification：
Summary
PRODUCT DETAILS

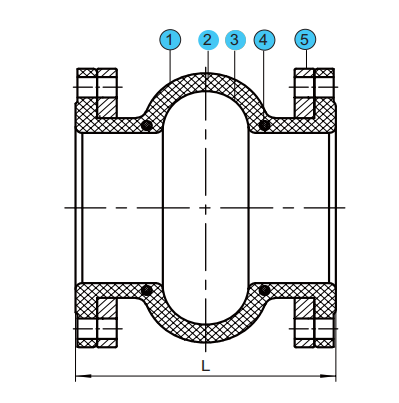

MateriaI List
|
Item No. |
parts Name |
parts Material |
|
1 |
cover |
EpDM |
|
2 |
Reinforcing Fabric |
Nylon |
|
3 |
Tube |
EpDM |
|
4 |
Retain Ring |
Steel |
|
5 |
Flange |
carbon Steel |
Features:
1. Full Rubber Flange surfaces provides a fulid & gas tight seal to make unnecessary for gasket.
2.Allow for 4 way movements.
3.precision molded of synthetic rubber & nylon.
4.Excellent ability to absorb vibration and sound.5.perfect corrosion resistant.
Dimensions(mm/in)
|
Nominal Diameter |
Length (L) |
Allowable Movement (mm) |
Max. pressure |
||||
|
mm |
inch |
Axial comp. |
Axial Ext. |
Lateral. |
Angular.(。) |
Bar |
|
|
700 |
28 |
260 |
16 |
25 |
22 |
15 |
10 |
|
800 |
32 |
260 |
16 |
25 |
22 |
15 |
10 |
|
900 |
36 |
260 |
16 |
25 |
22 |
15 |
10 |
|
1000 |
40 |
260 |
16 |
25 |
22 |
15 |
6 |
|
1200 |
48 |
260 |
16 |
25 |
22 |
15 |
6 |
|
1400 |
56 |
350/400 |
20 |
28 |
26 |
15 |
6 |
|
1500 |
60 |
350 |
20 |
28 |
26 |
15 |
6 |
|
1600 |
64 |
350 |
20 |
28 |
26 |
15 |
6 |
|
1800 |
72 |
400/450 |
20 |
28 |
26 |
15 |
6 |
|
2000 |
80 |
450 |
20 |
28 |
26 |
15 |
6 |
|
2200 |
88 |
400/500 |
25 |
35 |
30 |
10 |
6 |
|
2400 |
96 |
400/360/500 |
25 |
35 |
30 |
10 |
6 |
|
2600 |
104 |
500 |
25 |
35 |
30 |
10 |
6 |
|
2800 |
112 |
580 |
25 |
35 |
30 |
10 |
6 |
