PRODUCT DETAILS
◆ Features
● Dimension Range:DN100-DN1200 Working Pressure:PN35
● Flange Drilling:AS4087 PN35
● Max.Temperature:70℃
● Non-100%Restrained with 25%long stud.
●*Minimum number of long stud is 4,if 25%of total long stud less than 4.
◆Material Specification:
|
No. |
Parts Name |
Material |
Specification |
|
1 |
Short Flanged Body |
Ductile Iron |
GGG50 |
|
2 |
Seal Ring |
Rubber |
EPDM |
|
3 |
End Ring |
Ductile Iron |
GGG50 |
|
4 |
Long Flanged Body |
Ductile Iron |
GGG50 |
|
5 |
Stud |
Dacromet Coated Steel |
|
|
6 |
Stud |
Dacromet Coated Steel |
|
|
7 |
Washer |
Dacromet Coated Steel |
|
|
8 |
Nut |
Dacromet Coated Steel |
|

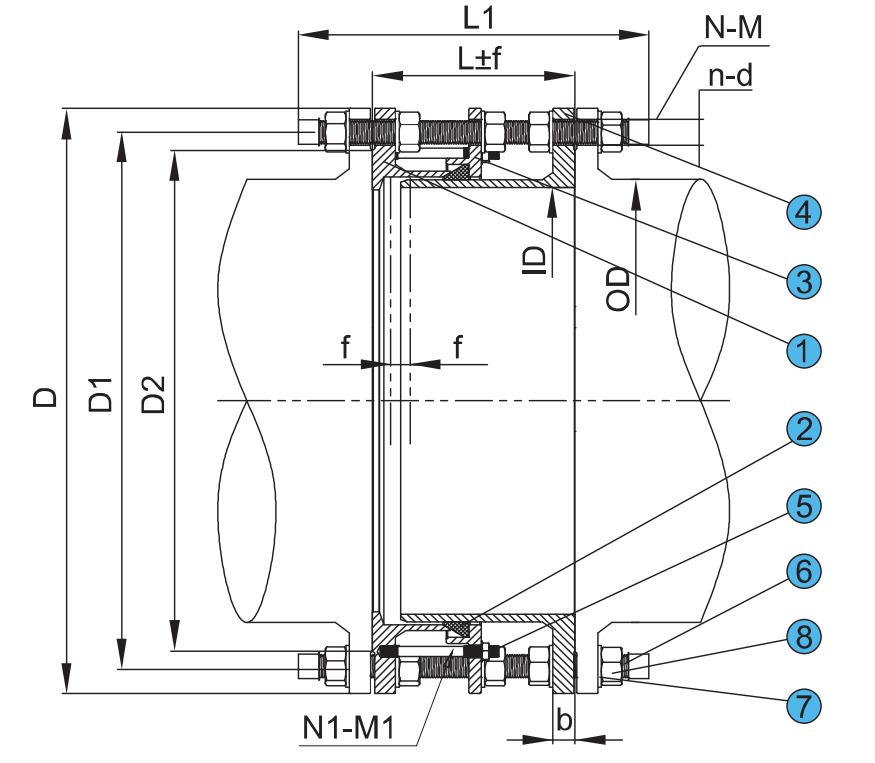

◆ Dimensions(mm)
|
Nom |
ID |
OD |
Length(mm) |
Adjustment(mm) |
AS4087 PN35 |
Bolt/Nut |
||||||||
|
L |
L1 |
f |
D |
D1 |
D2 |
n-d |
b |
M |
N |
M1 |
N1 |
|||
|
DN100 |
101 |
118 |
210 |
340 |
±25 |
230 |
191 |
167 |
8-18 |
19 |
M16 |
4 |
M12x140 |
4 |
|
DN150 |
154 |
170 |
210 |
350 |
±25 |
305 |
260 |
232 |
12-22 |
20 |
M20 |
4 |
M12x140 |
6 |
|
DN200 |
206 |
222 |
225 |
370 |
±25 |
370 |
324 |
296 |
12-22 |
22 |
M20 |
4 |
M12x140 |
6 |
|
DN250 |
258 |
274 |
230 |
400 |
±25 |
430 |
381 |
349 |
12-26 |
24.5 |
M24 |
4 |
M12x140 |
6 |
|
DN300 |
307 |
326 |
245 |
420 |
±25 |
490 |
438 |
406 |
16-26 |
27.5 |
M24 |
4 |
M12x140 |
8 |
|
DN350 |
359 |
378 |
255 |
450 |
±25 |
550 |
495 |
459 |
16-30 |
30 |
M27 |
4 |
M16x170 |
8 |
|
DN375 |
395 |
406 |
250 |
460 |
±25 |
580 |
521 |
485 |
16-30 |
32 |
M27 |
4 |
M16x170 |
8 |
|
DN400 |
408 |
429 |
260 |
460 |
±25 |
610 |
552 |
516 |
20-30 |
32 |
M27 |
5 |
M16x170 |
10 |
|
DN450 |
456 |
480 |
270 |
480 |
±25 |
675 |
610 |
571 |
20-33 |
34.5 |
M30 |
5 |
M16x170 |
10 |
|
DN500 |
508 |
532 |
280 |
510 |
±25 |
735 |
673 |
634 |
24-33 |
36.5 |
M30 |
6 |
M16x170 |
12 |
|
DN600 |
613 |
635 |
290 |
530 |
±25 |
850 |
781 |
739 |
24-36 |
42 |
M33 |
6 |
M16x170 |
12 |
|
DN700 |
711 |
738 |
310 |
560 |
±30 |
935 |
857 |
815 |
24-36 |
46.5 |
M33 |
6 |
M20x200 |
12 |
|
DN750 |
750 |
813 |
330 |
580 |
±30 |
1015 |
940 |
898 |
28-36 |
48 |
M33 |
7 |
M20x200 |
14 |
|
DN800 |
817 |
842 |
330 |
600 |
±30 |
1060 |
984 |
942 |
28-36 |
51 |
M33 |
7 |
M20x200 |
14 |
|
DN900 |
911 |
945 |
345 |
630 |
±30 |
1185 |
1105 |
1060 |
32-39 |
55.5 |
M36 |
8 |
M20x200 |
16 |
|
DN1000 |
1012 |
1048 |
350 |
640 |
±30 |
1275 |
1194 |
1149 |
36-39 |
60 |
M36 |
9 |
M20x200 |
18 |
|
DN1200 |
1216 |
1255 |
380 |
700 |
±30 |
1530 |
1441 |
1385 |
40-42 |
69 |
M39 |
10 |
M20x200 |
20 |
Hiwa productspeiiation in this catalogue foeference only,the product construction subject to Hiwa's design,Hiwa reserve the right to change the design, construction,specification without prior notice and without incuring any obigation.Any definite information kindly contact with Hiwa directly.
