Manual Lug Centerline Butterfly Valve

Classification：

LT butterfly valve

Summary

Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Message

PRODUCT DETAILS

Product Model: LTD71X-10/16Q、LTD71X-10K 、LTD71X-150LB

Size: DN40-DN300

Nominal Pressure: PN10/PN16/Class 150/10K

Suitable Temperature: -20～120℃

Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Body Materials: Ductile Iron

Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Product Introduction

1.Design Standards

Design and manufacturing standards:	GB/T 12238 Design and Manufacture Standard:GB/T 12238
Structure length standard:	GB/T 12221 Structure Length Standard: GB/T 12221
Test standards:	GB/T 13927 Test Standard：GB/T 13927
Upper flange connection standard:	ISO 5211 Top Flange Connection Standard:
Flange size standard:	GB/T 17241.6、ASME B16.5、ASME B16.47、 ASME B16.1、JIS B2220 Flange Size Standard: ASME B16.47、 ASME B16.1、JIS B2220

2.Main Parts Materials

Valve body material:	DI Body Materials: DI
Butterfly plate material:	DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598 Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Valve seat material:	EPDM、NBR、Viton、PTFE Seat Materials: EPDM、NBR、Viton、PTFE
Valve spindle material:	45#、SS416、SS420、SS304 Stem Materials: 45#、SS416、SS420、SS304

3.Product Advantages

The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long.

All products can provide the pressure test: All Arnos products can provide the pressure test report before leaving the factory.

High performance seat rubber: The rubber content is 50%, and the switch life is more than 10000 times

Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal;

Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and electric actuator can be changed under pressure.

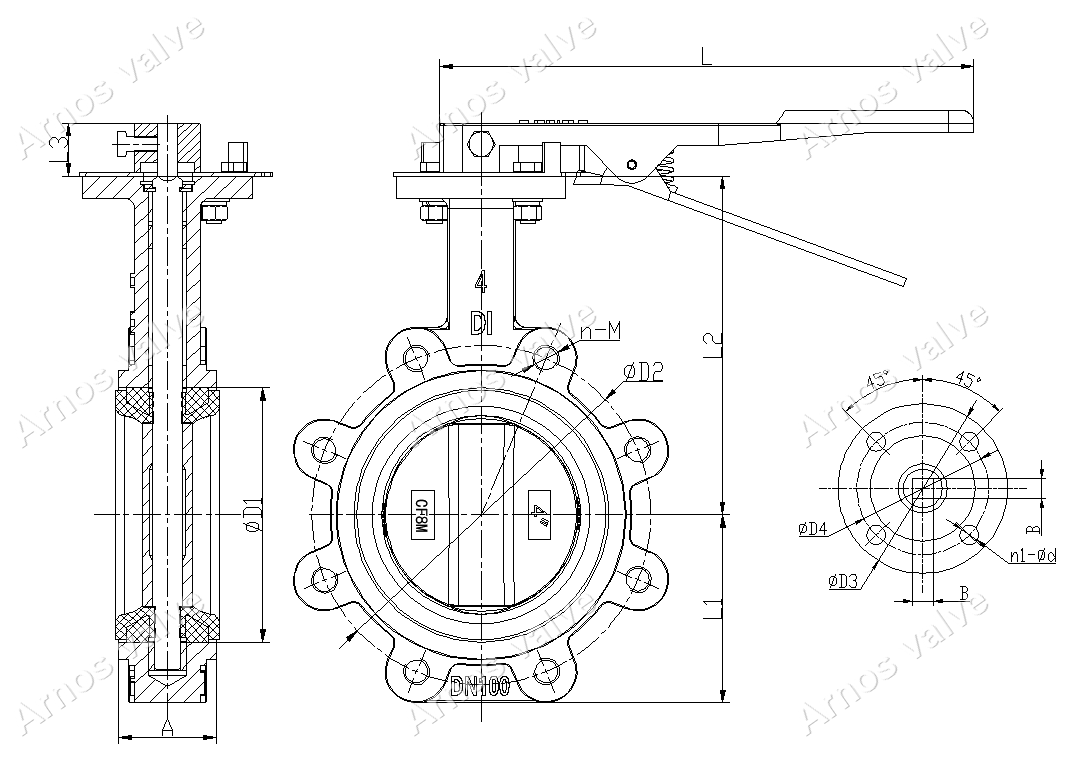

4.Parameters

DN		A	D1	L1	L2	L3	B	PN16		PN10		150LB		φD3	φD4	n1-φd	L
DN		A	D1	L1	L2	L3	B	D1	n-M	D1	n-M	D1	n-M	φD3	φD4	n1-φd	L
2″	DN50	42	73.3	54	161	25	9	125	4-M16	125	4-M16	120.7	4-5/8″	65	50	4-8	249
2.5″	DN65	44	86	62	175	25	9	145	4-M16	145	4-M16	139.7	4-5/8″	65	50	4-8	249
3″	DN80	45	100.9	82	181	25	9	160	8-M16	160	8-M16	152.4	4-5/8″	65	50	4-8	249
4″	DN100	51.5	132	99	200	28	11	180	8-M16	180	8-M16	190.5	8-5/8″	90	70	4-10	283
5″	DN125	54	156	114	213	28	14	210	8-M16	210	8-M16	215.9	8-3/4″	90	70	4-10	283
6″	DN150	55	185	129	236	28	14	240	8-M20	240	8-M20	241.3	8-3/4″	90	70	4-10	283
8″	DN200	59	235	150	260	33	17	295	12-M20	295	8-M20	298.5	8-3/4″	125	102	4-12	390
10″	DN250	66	289	186	292	33	22	355	12-M24	350	12-M20	362	12-7/8″	125	102	4-12	390
12″	DN300	76	341	218	337	33	22	410	12-M24	400	12-M20	431.8	12-7/8″	125	102	4-12	540
