Pneumatic Lug Centerline Butterfly Valve

Classification：

LT butterfly valve

Summary

Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Message

PRODUCT DETAILS

Pneumatic Operated Lug Butterfly Valve

Product Model: LTD671X-10/16Q、LTD671X-10K 、LTD671X-150LB

Size: DN50-DN600

Nominal Pressure: PN10/PN16/Class 150/10K

Suitable Temperature: -20～120℃

Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Body Materials: Ductile Iron

Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

1.Design Standards

Design and manufacturing standards:	GB/T 12238 Design and Manufacture Standard: GB/T 12238
Structure length standard:	GB/T 12221 Structure Length Standard: GB/T 12221
Test standards:	GB/T 13927 Test Standard：GB/T 13927
Upper flange connection standard:	ISO 5211 Top Flange Connection Standard:
Flange size standard:	GB/T 17241.6、ASME B16.5、ASME B16.47、 ASME B16.1、JIS B2220 Flange Size Standard: ASME B16.47、 ASME B16.1、JIS B2220

2.Main Parts Materials

Valve body material:	DI Body Materials: DI
Butterfly plate material:	DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598 Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Valve seat material:	EPDM、NBR、Viton、PTFE Seat Materials: EPDM、NBR、Viton、PTFE
Valve spindle material:	45#、SS416、SS420、SS304 Stem Materials: 45#、SS416、SS420、SS304

3.Product Advantages

The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges;

All products can provide the pressure test: All Arnos products can provide the pressure test report before leaving the factory.

High performance seat rubber: The rubber content is 50%, and the switch life is more than 10000 times

Axial seal: The shaft is supported by 4 oil-free bearings, double seal structure design of oil seal and O-ring, smaller torque and reliable seal;

Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

Pneumatic Operated: The pneumatic operated adopts double piston rack structure, precise meshing, high efficiency and outputting constant torque. The cylinder body is made of extruded aluminum alloy with high strength and hardness. The sliding bearing is made of low friction materials, low friction coefficient, flexible rotation and long service life.

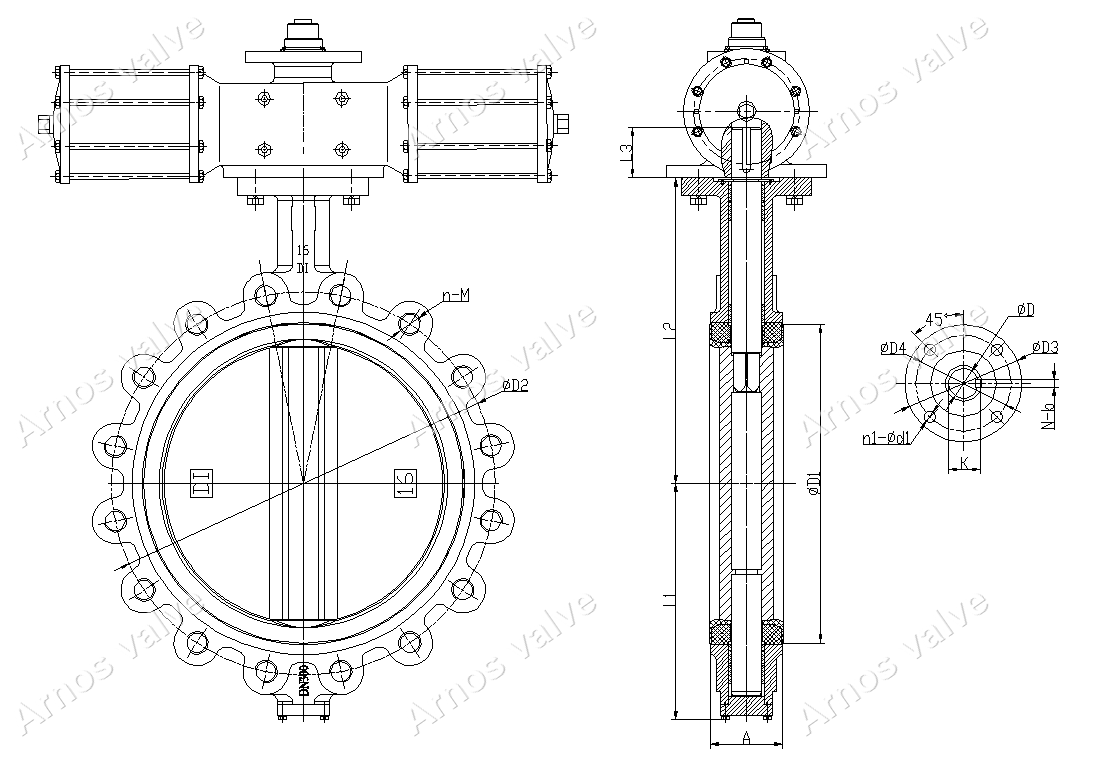

4.Parameters

DN		A	D1	L1	L2	L3	B	PN16		PN10		150LB		φD3	φD4	n1-φd
DN		A	D1	L1	L2	L3	B	D2	n-M	D2	n-M	D2	n-M	φD3	φD4	n1-φd
2″	DN50	42	73.3	54	161	25	9	125	4-M16	125	4-M16	120.7	4-5/8″	65	50	4-8
2.5″	DN65	44	86	62	175	25	9	145	4-M16	145	4-M16	139.7	4-5/8″	65	50	4-8
3″	DN80	45	100.9	82	181	25	9	160	8-M16	160	8-M16	152.4	4-5/8″	65	50	4-8
4″	DN100	51.5	132	99	200	28	11	180	8-M16	180	8-M16	190.5	8-5/8″	90	70	4-10
5″	DN125	54	156	114	213	28	14	210	8-M16	210	8-M16	215.9	8-3/4″	90	70	4-10
6″	DN150	55	185	129	236	28	14	240	8-M20	240	8-M20	241.3	8-3/4″	90	70	4-10
8″	DN200	59	235	150	260	33	17	295	12-M20	295	8-M20	298.5	8-3/4″	125	102	4-12
10″	DN250	66	289	186	292	33	22	355	12-M24	350	12-M20	362	12-7/8″	125	102	4-12
12″	DN300	76	341	218	337	33	22	410	12-M24	400	12-M20	431.8	12-7/8″	125	102	4-12
14″	DN350	76	372	242	368	45	22	470	16-M24	460	16-M20	476.3	12-1″	125	102	4-12

DN		A	D1	L1	L2	L3	φD	N-b	K	PN16		PN10		150LB		φD3	φD4	n1-φd1
DN		A	D1	L1	L2	L3	φD	N-b	K	D2	n-φd	D2	n-φd	D2	n-φd	φD3	φD4	n1-φd1
16″	DN400	86.5	436	320	403	52	33.15	1-10	36.2	525	16-M27	515	16-M24	539.8	16-1″	175	140	4-18
18″	DN450	104.6	487	351	415	52	38	1-10	41	585	20-M27	565	20-M24	577.9	16-1 1/8″	175	140	4-18
20″	DN500	130	532	386	466	64	41.15	1-12	44.2	650	20-M30	620	20-M24	635	20-1 1/8″	175	140	4-18
24″	DN600	152	651	446	525	70	50.65	1-16	54.7	770	20-M33	725	20-M27	749.3	20-1 1/4″	210	165	4-22
