Pneumatic Wafer Universal Centerline Butterfly Valve

Classification：

Center line wafer butterfly valve

Summary

Product Model: D671X-10/16Q、D671X-10K 、D671X-150LB Nominal Pressure: PN10/PN16/Class 150/10K Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Message

PRODUCT DETAILS

Pneumatic Operated Wafer Universal Butterfly Valve

Product Model: D671X-10/16Q、D671X-10K 、D671X-150LB

Nominal Pressure: PN10/PN16/Class 150/10K

Applicable Medium：Clear water, neutral liquid, weak acid and alkali, sea water, Oils, etc.

Body Materials: Ductile Iron

Application field: Municipal construction, water treatment, water supply and drainage, water conservancy projects, etc.

Product Introduction

1.Design Standards

Design and manufacturing standards:	GB/T 12238 Design and Manufacture Standard: GB/T 12238
Structure length standard:	GB/T 12221 Structure Length Standard: GB/T 12221
Test standards:	GB/T 13927 Test Standard：GB/T 13927
Upper flange connection standard:	ISO 5211 Top Flange Connection Standard: ISO 5211
Flange size standard:	GB/T 17241.6、ASME B16.5、ASME B16.47、 ASME B16.1、JIS B2220 Flange Size Standard: ASME B16.47、 ASME B16.1、JIS B2220

2.Main Parts Materials

Valve body material:	DI Body Materials: DI
Butterfly plate material:	DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598 Disc Materials: DI、CF8、CF8M、CF3、CF3M、1.4529、C594、C598
Valve seat material:	EPDM、NBR、Viton Seat Materials: EPDM、NBR、Viton
Valve spindle material:	SS416、SS420、SS304、SS431 Stem Materials: SS416、SS420、SS304、SS431

3.Product Advantages

The structure is simple and compact, the rotation of 90 °is quickly to open and close, and the service life is long. The side flange can meet the PN10, PN16, 150Lb and 10K flanges.

All products can provide the pressure test: All Arnos products can provide the pressure test report before leaving the factory.

High performance seat rubber: The rubber content is 50%, and the switch life is more than 10000 times.

Axial seal: The shaft is supported by 4 oil-free bearings, with double seal structure design, smaller torque and reliable seal.

Surface coating: Epoxy powder coating is adopted, with strong adhesion and good weather resistance. It can be used indoors and outdoors.

Pneumatic Operated: The pneumatic operated adopts double piston rack structure, precise meshing, high efficiency and outputting constant torque. The cylinder body is made of extruded aluminum alloy with high strength and hardness. The sliding bearing is made of low friction materials, low friction coefficient, flexible rotation and long service life.

The design of shaft is blow-off resistant: The no-pin butterfly valve is designed with anti blow-off structure, and pneumatic operated can be changed under pressure.

4.Parameters

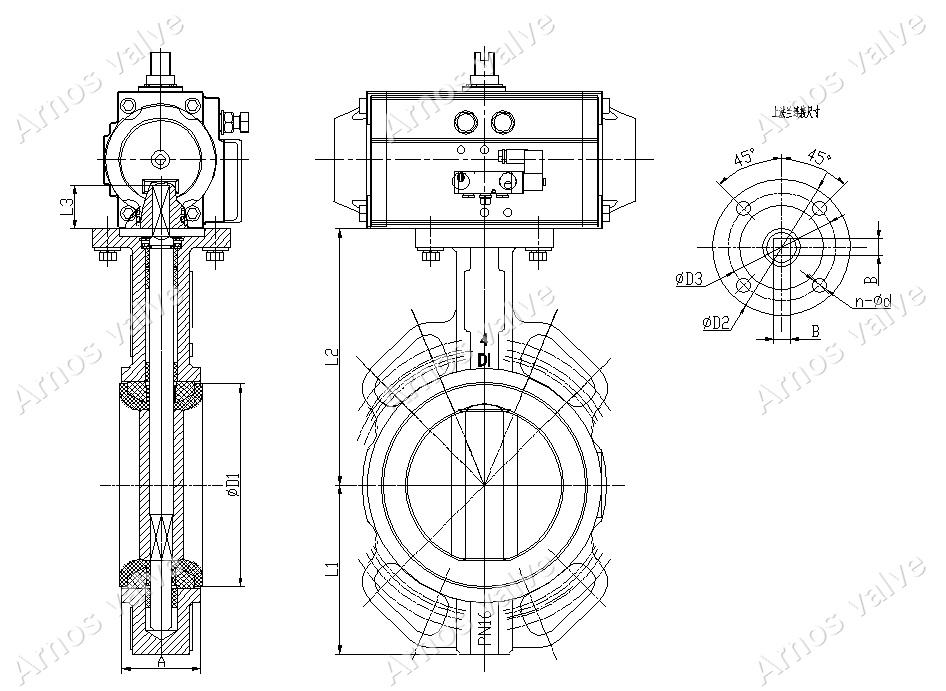

DN40-DN350

Top Flange Connection Size

DN		A	D1	L1	L2	L3	B	φD2	φD3	n-φd	φD4
1.5″	DN40	33	69	65	127	14	9	65	50	4-8	135
2″	DN50	42	73.3	75	129	14	9	65	50	4-8	135
2.5″	DN65	44	86	82	136	18	9	65	50	4-8	135
3″	DN80	45	100.9	99	153	18	9	65	50	4-8	135
4″	DN100	51.5	132	110	167	20	11	90	70	4-10	135
5″	DN125	54	156	125	193	20	14	90	70	4-10	135
6″	DN150	55	185	145	209	25	14	90	70	4-10	135
8″	DN200	59	235	170	251	25	17	125	102	4-12	270
10″	DN250	66	289	210	280	30	22	125	102	4-12	270
12″	DN300	76	341	240	312	30	22	125	102	4-12	270
14″	DN350	76	372	271	327	40	22	125	102	4-12	270

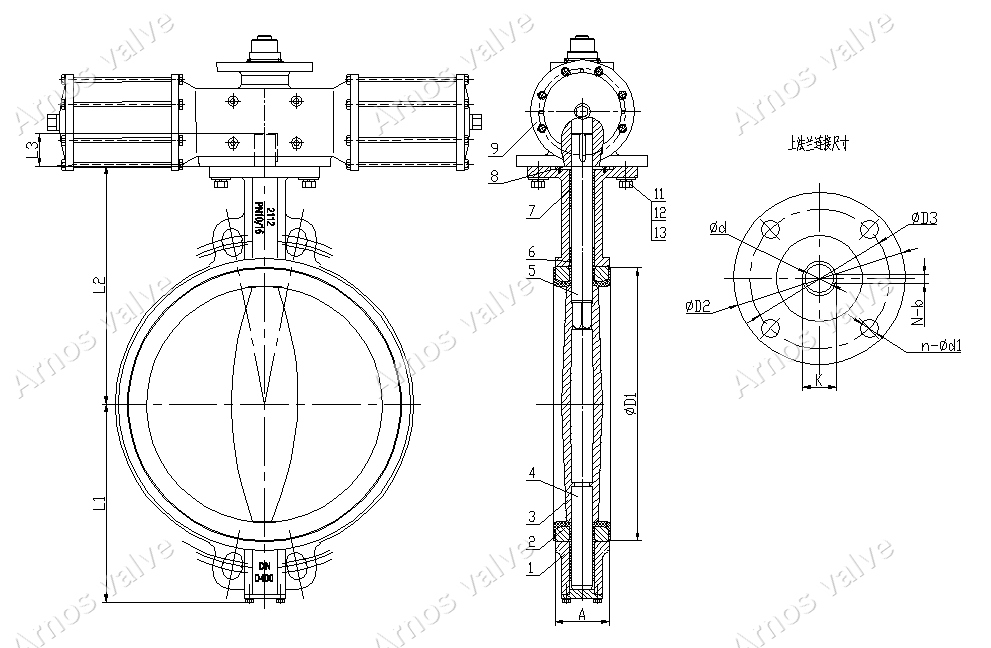

DN400-DN800

上法兰连接尺寸： Top Flange Connection Size

DN		A	D1	L1	L2	L3	φd	φD2	φD3	n-φd1	N-b	K
16″	DN400	86.5	436	320	403	52	33.15	175	140	4-18	1-10	36.2
18″	DN450	104.6	487	351	415	52	38	175	140	4-18	1-10	41
20″	DN500	130	532	386	466	64	41.15	175	140	4-18	1-12	44.2
24″	DN600	152	651	446	525	70	50.65	210	165	4-22	1-16	54.7
28″	DN700	163	741	520	618	95	63.35	300	254	8-18	2-18	71.4
32″	DN800	188	847	580	665	95	63.35	300	254	8-18	2-18	71.4
36″	DN900	203	971	670	720	130	75	300	254	8-18	2-20	84
40″	DN1000	216	1050	735	800	130	85	300	254	8-18	2-22	95
48″	DN1200	276	1261	878	940	150	105	350	298	8-22	2-28	117
