singIe Arch Rubber Expansion Joint
Classification：
Summary

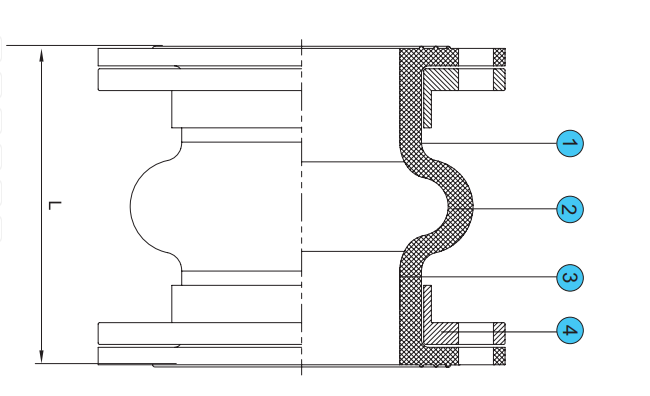

PRODUCT DETAILS
MateriaI List
|
Item No. |
Parts Name |
Parts Material |
|
1 |
cover |
EPDM |
|
2 |
Reinforcing Fabric |
Nylon |
|
3 |
Tube |
EPDM |
|
4 |
Split Retaining Rings |
carbon Steel |
Features & Benefits
Working pressure ratings up to 150 psi. Temperature ratings to 250。F.vacuum ratings to 15 in.Hg
Allows for greater motion capabilities than general expansion joints.
Excellent for absorbing thermal expansion,eliminating vibration & sound.Gaskets and packing not required.
Absorbs water pulsation and protects against start-up surge force.
Dimensions(mm/in)
|
Size |
Neutral Length |
Max. Pressure |
Max vacuum |
Max Temp. |
Allowable Movement |
|||||
|
Axial |
Deflection |
|||||||||
|
DN |
Inch |
mm |
(in.) |
(P.S.I.G) |
(in. of Hg)-4 |
。F |
comp. |
Ext. |
Lateral |
Angular |
|
(in.) |
(in.) |
(in.) |
(。) |
|||||||
|
DN50 |
2 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
3/4 |
35 |
|
DN65 |
2-1/2 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
3/4 |
30 |
|
DN80 |
3 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
3/4 |
30 |
|
DN100 |
4 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
3/4 |
25 |
|
DN125 |
5 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
3/4 |
25 |
|
DN150 |
6 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
1 |
20 |
|
DN200 |
8 |
150 |
6 |
150 |
15 |
250 |
1-3/4 |
3/4 |
1 |
20 |
|
DN250 |
10 |
200 |
8 |
150 |
15 |
250 |
1-3/4 |
3/4 |
1 |
15 |
|
DN300 |
12 |
200 |
8 |
150 |
15 |
250 |
1-3/4 |
3/4 |
1 |
15 |
|
DN350 |
14 |
200 |
8 |
130 |
10 |
250 |
2 |
7/8 |
1-1/8 |
12 |
|
DN400 |
16 |
200 |
8 |
110 |
10 |
250 |
2 |
7/8 |
1-1/8 |
12 |
|
DN450 |
18 |
200 |
8 |
110 |
10 |
250 |
2 |
7/8 |
1-1/8 |
9 |
|
DN500 |
20 |
200 |
8 |
110 |
10 |
250 |
2 |
7/8 |
1-1/8 |
9 |
|
DN600 |
24 |
250 |
10 |
100 |
10 |
250 |
2-1/4 |
1 |
1-1/8 |
9 |
